Loader Parts Seattle - Loaders are heavy equipment that is used in many industries. They specialize in moving and loading materials including snow, raw minerals, asphalt, gravel, demolition debris, rock, woodchips, sand, snow, dirt, grain, feed and the like. Loaders move material into dump trucks, rail cars, conveyor belts and feed-hoppers. There are many types of loaders made for specific applications including skid-steer, payloader, skip loader, front loader, scoop, shovel, bucket loader and wheel-loader models.
Description
This machine is part of the tractor family features a wide bucket attached to the front of the machine that is connected to the endo of two booms or arms. Some models have wheels and others rely on tracks. Loaders can pick up items including dirt, sand or gravel and move it to a different location on the job site without having to push it along the ground. Loaders move stockpiled items from ground level and transfer it to a dump truck or open trench. Removable or permanently mounted attachments make up the loader assembly. The bucket portion of the loader can be interchangeable with other tools. Fork attachments can be mounted to lift shipping containers or pallets. A hydraulically operated clamshell bucket can be attached for light dozer and scraper applications. A bale grappler and other devices can be attached to transport large bales of hay or straw.
Font loaders refer to loaders that feature a front bucket. JCBs, backhoe loaders and loader backhoes are the name given to tinier loader tractors that use a small backhoe. These loader models are commonly used for loading trucks, digging, clearing debris and laying pipe. The loader is not as efficient as an excavator or backhoe as it is unable to dig lower than its’ wheel level. Loader bucket capacity is in the range of 0.5 cubic meters to thirty-six cubic meters. Between a backhoe loader and front loader, the front loader model has more bucket capacity available.
There are loader models available with tracks or others that feature wheels, depending on which application you are going to use it for. Construction sites commonly employ track models since rubber tires can be easily damaged from sharp nails and similarly sharp things. Wheels offer better speed and mobility and do not damage paved roads the way tracks do, but tracks offer more traction. In construction zones, loaders are responsible for moving materials and tools for digging around the site.
Front loaders are popular for snow removal from sidewalks, narrow locations, parking lots and other areas that cannot accommodate larger machines. They can be used as snowplows with the proper attachment or can utilize a snow-basket or bucket to load snow into a dump truck or snow plow compartment.
When transporting lighter items such as small gravel, peat or woodchips, special high-tip buckets are used to simplify bucket emptying when it is at full height. Over the past two decades, front loaders have gained popularity in urban engineering and earthmoving jobs. A variety of loader sizes are on the market to handle numerous jobs.
Sizeable loaders do not have the same automotive steering features unlike regular tractors with a backhoe or front bucket. This model of loader utilizes articulated steering with a hydraulically actuated pivot point that is located between the front and rear axles. This model allows most of the weight to be carried by the machine thanks to the solid front axle. Greater maneuverability is offered with the articulated steering. The attachment and the front wheels rotate along the same axis to allow the operator better load steering abilities after the machine is in position. After the machine is turned to the side and the heavy load is raised, there is more risk of turning over towards the wide side.

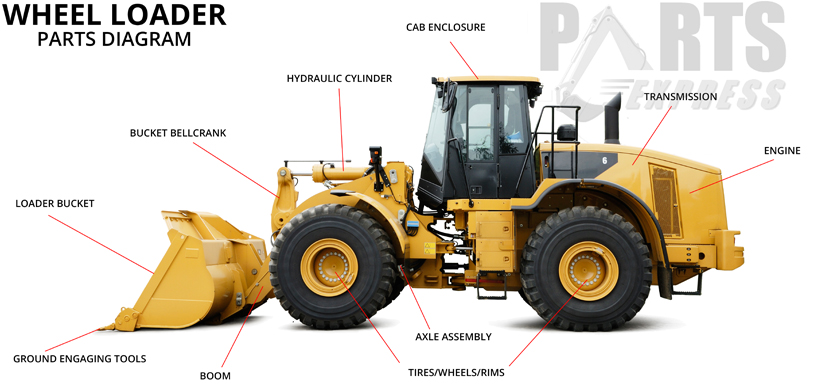

Major Components
Major items include:
• Engine (usually diesel)
• Transmission components (axles, gearbox, tracks or wheels, motors, pumps, etc.,
• Hydraulic components (valves, motors, pumps)
The engine is responsible for controlling the hydraulics and the transmission which enables the front attachments such as the bucket, forks, sweeper etc. to move. Each loader model has particular lifting capabilities and can conquer manure, sand, gravel or other items.
Wheel Loaders
The first wheel loader consisted of a tractor with a rear-wheel drive. New wheel loaders have the same front and rear wheel dimensions with articulation.
Armored Wheel Loaders
Various military applications rely on armored Caterpillar 966 wheel loaders to conduct combat engineering and construction missions. This equipment is commonly used for building fortification, constructing bases and disassembling roadblocks. Armor plating is placed on the machine to offer protection from Molotov cocktails, rocks, stones and gunfire. Certain elite police squads have relied on wheel loaders for military use to open routes and lead the way for police. Remote controlled wheel loaders are used by some police and military departments.
Tractor Front Loaders
Tractor models that run with 50 to 200 horsepower can utilize a loader feature. This kind of tractor loader was built to facilitate numerous farming activities. These machines are extremely versatile and much more affordable compared to telehandlers. Tractor loaders can use various attachments to enhance efficiency including spikes and hydraulic grabs to assist with silage and bale handling. Fork attachments are ideal for pallet applications and buckets are used frequently for agricultural jobs.
Compact Front End Loaders
Front-end loaders or FELs are commonly added to compact utility tractors or CUTs and farm tractors. Smaller, compact models range in horsepower from 18 to 50, an ideal amount of power for groundskeeping and landscaping jobs. There are semi-curved, curved arm and regular dogleg models available for different applications.
Compact utility tractors with front-end loaders are capable of doing a variety of jobs and come with numerous attachments. For increased digging abilities, a tooth bar may be outfitted to the front edge of the machine. The quick attach system or QA and quick coupler allows attachments and buckets, bale spears and pallet forks to be removed easily and attached.
The load-haul-dump or LHD machine consists of a front end loader that is beneficial in mining applications. It uses a variety of buckets and can operate either with electric motors or diesel engines.
Skid Loaders
A skid-steer loader, skid loader or skidsteer refers to a small engine powered loader featuring a rigid frame. This unit features lift arms enabling it to easily attach to numerous tools. These units consist of a 4-wheeled vehicle that mechanically synchronizes on either side. The left side drive wheels are capable of being driven independently from the right side. Typically, the wheels hold a straight, fixed alignment on the body and have no separate steering mechanism.
Differential steering is responsible for conducting turning maneuvers. Each side of left and right wheel pairs operate at different speeds, allowing the machine to turn by skidding or dragging wheels of fixed-orientation over the ground. Torsional forces due to the dragging motion are prevented thanks to the strong wheels and rigid frame. High ground friction created by skid steers and tracked vehicles can destroy fragile or soft road surfaces.
Specially designed wheels convert low ground friction. There are specific skid-steer units that can conduct zero-radius turns and pirouette turning to facilitate maximum maneuverability. These functions are desirable for jobs requiring a loader that is compact and agile. Certain models known as multi-terrain loaders rely on tacks instead of wheels.
The lift arms in skid loaders are situated alongside the operator with pivot points located behind the driver’s shoulders. Being so close to moving boom caused operator safety concerns with the first models compared to conventional front loader models, particularly during entry and exit of the machine. Thankfully, today’s machines offer more safety features and totally enclosed cabs to maintain safety. Comparable to other front loader models, these machines can carry items by pushing them across the ground or carrying materials in the bucket for easy truck or trailer depositing.
History of Tracked Loaders
Tracked loaders are complete with a chassis for loading items and digging materials with a loader There have been three major design evolutions for this equipment, each time resulting in greater efficiency and versatility. This equipment can complete a variety of tasks, making it a useful addition to many fleets.
The first tracked loaders were created from track tractors; however, they offered less ability to dig into harder ground surfaces, making them similar to bulldozers during that time. Most often, tracked loaders were used for moving stockpiled items into loading trucks and rail cars.
The addition of hydraulic integration created more benefits with overall power and increasing loader linkage power. The hydraulic system allows the machine to facilitate down-pressure to the bucket, creating much better digging capacity within tighter environments. Initially, engine weight was situated on the front portion of the tracks together with other heavy loader equipment. This situation placed too much wear and tear on the front idler wheels and the undercarriage. The next big design success was the implementation of the hydrostatic drive system, greatly improving track loader efficiency.
Swingloaders
A swingloader is a popular piece of equipment that uses a rigid frame and a swinging boom. The boom can travel 180 degrees or farther. These machines are used mainly in the railroad industry for laying rail. There are many different attachments such as magnets, buckets and forks that can be used. Agricultural applications rely on smaller machines. Swingloaders are popular in a variety of places where space is limited. These machines are commonly used in applications where space is compromised. This loader can lift and deposit on all sides.
