Bulldozers Parts in Seattle - Bulldozers, also referred to as dozers, are a type of tractor equipped with a dozer blade. Crawler tractors run on continuous track as opposed to relying on wheels, although, wheeled versions are also on the market. The dozer blade is a large metal plate fixed to the front of the bulldozer. Large volumes can be moved with the dozer blade including dirt, gravel and snow on a variety of landscapes. The back of the bulldozer is usually fitted with large, metal teeth, called the ripper, useful in breaking up hard, compressed material.
Specifics
A typical bulldozer utilizes tracks that provide excellent maneuvering options and stellar traction on unstable, uneven or rough ground with a unique transmission that enables the dozer to operate with more tractive force. The track width evenly distributes the weight in unstable applications to prevent the industrial machine from sinking. There are swamp track options available which are tracks with wider width options. These capabilities make bulldozers very popular for use in road construction, clearing land, mining and many other jobs needing powerful but stable equipment to move material.
The dozers that rely on a wheeled system typically consist of four wheels that use a 4WD system combined with an articulated hydraulic steering mechanism. Mounted directly in front of the articulation joint, the bulldozer blade uses a hydraulic system for operating instead of a mechanical setup.

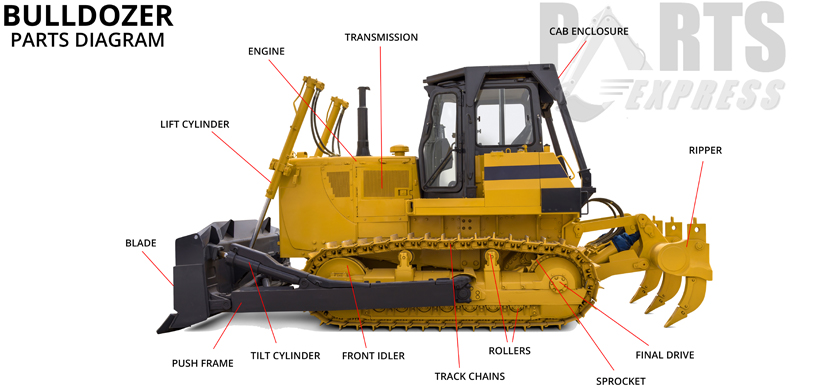

The main tools that distinguish the dozer from other construction machine are the dozer blade and the ripper.
The Dozer Blade
The huge metal plate that is located at the front end of the bulldozer is called the dozer blade. The purpose of the dozer blade is to push heavy items and awkward materials. This could be anything from dirt, rubbish, sand, gravel or even snow. There are typically three types of dozer blades available. They are:
1. the universal blade;
2. the straight blade; and
3. the semi-U blade.
The universal blade, or U blade is tall, curved and has large wings on the side used to carry extra material. The straight blade, or S blade, is short, has no lateral curve and no side wings and is also used for fine earth grading. The SU or semi-U blade combines a shorter blade with slight side wings and less curve compared to the U blade. This blade is commonly used to move large rock and boulder piles.
Dozer blades commonly attach horizontally or at an angle to the tractor. Dozer blade angles are capable of being adjusted via tilt cylinders. The dozer blade is sometimes sharpened to allow for cutting of objects, such as stumps or roots. An angledozer features a blade that is pushed ahead on one side to enable items to be cleared out of the path of the bulldozer. It is common to see an angledozer in action on highways and roads during winter snow removal.
A variety of bulldozers are equipped with a bull blade. The bull blade refers to a reinforced middle section of the bulldozer. This allows a bulldozer to push a scraper, which is another large, heavy piece of equipment used to move earth.
Military vehicles also utilize dozer blades. Numerous military vehicles can attach a dozer blade for strategic operations including battle tanks, artillery tractors and combat engineering vehicles. The dozer blade helps the battle tank maneuver items and mines to create combat positions or dig shelters. It can help establish a protective barrier against obstacles, artillery and explosive items, making it a valuable machine for military applications.
The Dozer Ripper
The shank or dozer ripper is the substantial tool situated on the bulldozers’ back with long teeth. There are single shank options on dozer rippers or groups with two or more shanks available depending on the application required. The giant ripper is the name given to the single shank design that is often needed for dense applications. Multi-shank rippers refer to multi-shank designs.
The boot refers to the tip of the shank and consists of a detachable metal piece. This design allows the boot to be replaced instead of the entire shank whenever it becomes broken or dull.
The dozer ripper breaks up concrete, rock, solid objects and dirt into smaller pieces to facilitate easier bulldozer transport. This allows for quicker project completion.
In farming, a dozer ripper is used to break up rock and very dense earth to allow for ploughing and planting. In some areas of Italy and New Zealand, for example, this is especially useful as the nutrient-rich, old lava flows would otherwise not be farmable given their denseness. The ripper loosens the top lava rock layer to initiate farming applications.
Bulldozer Adaptations
Over time, the bulldozer has been adapted to allow for uses that were not possible with its original design.
For example, the original bulldozer was too large for work in small areas, such as mines. These limitations led to more compact bulldozer designs and models. Very small, light bulldozers are sometimes referred to as calfdozers.
Snowier locations including ski hills rely on a lighter bulldozer version for snow removal and winter slope preparation.
Another adaptation resulted in the popular loader tractor. The loader tractor consists of replacing the dozer blade with a sizeable bucket and using hydraulic arms for raising and lowering. This adapted bulldozer model is referred to as a track loader, trackscavator or Drott to load gravel, earth and rocks into dump trucks.
A lesser-known bulldozer attachment is called the stump buster. The stump buster attachment is secured to the rear portion of the dozer. It is a single spike, protruding horizontally, used to split tree stumps for removal. These attachments are often used for land clearing applications. In those circumstances, the bulldozer also has a brush-rake blade.
The original bulldozer design is used ground leveling, road carving, deforestation and earthmoving applications. Heavy bulldozers are primarily used to level terrain in preparation for construction. However, the construction itself is mainly done by small bulldozers and loader tractors.
Origins
The initial bulldozer design was created when a draftsman, J. Earl McLeod teamed up with a farmer named James Cummings in 1923. The dozer blade was the initial design they created and was built to be attached to an existing tractor in order to plow fields. They built the original bulldozer and it can be viewed in Kansas’ city park, Morrowville. The team filed for a US patent on their bulldozer attachment later that year and a patent was granted in January 1925. It was normal for tractors to run on a track system at this time. The creation of the armored tank in World War I was largely due in part to this early version of the super maneuverable tractor.
By 1929, home-made or custom-manufactured attachments began to appear on wheeled and tracked tractors alike. However, the popularity of the bulldozer attachment did not occur until the mid-1930s. Hydraulic cylinders were introduced before 1940 and the term bulldozer referred to the whole machine who’s popularity greatly expanded by the 1950s.
Becoming popular for all types of construction applications, bulldozers grew into a variety of different stronger and larger models. Over time, large companies including Caterpillar and John Deer started manufacturing wheeled and tracked bulldozer models. Electric motors and hydraulic cylinders replaced initial cable winch mechanisms and automatic transmissions replaced manual transmission systems. More effective and accurate control systems were introduced thanks to these upgrades. These days, GPS technology geared toward bulldozing tasks has added to improved grade control.
Bulldozers began as a tractor attachment for farming applications and have grown to become one of the most useful pieces of equipment for construction, civil engineering, building and maintenance applications, mining operations and military use.
